Configure notifications and verify real events

After configuring notifications, send a test message and check that each selected channel also receives a real backup notification. Notifications send device names, identifiers, events, timestamps and possible error text to your chosen service; confirm that recipients may receive this information. Delivery failure does not turn a completed backup into a failed backup. Notifications do not replace UI and log checks.

Prepare

Log in using the installation guide and protect default secret_key or your original external master key. Prepare a dedicated notification destination and credentials using the provider’s current instructions. The fields, events and templates below have been checked against the current implementation. For a custom Webhook, read the protocol and network restrictions first.

Channel fields

Channel	Information needed	Conditions
Telegram	Bot Token, Chat ID	Create a bot and receiving conversation using Telegram documentation. Messages use Markdown; inspect delivery logs if special characters cause rejection.
Email	SMTP host, port, username, password, sender, recipient	Port 465 uses implicit TLS; other ports attempt STARTTLS. Credentials are refused when a username is configured but STARTTLS is unavailable. Normally use an app-specific password.
WeCom	Group-bot Webhook URL	HTTPS is required; use current WeCom group-bot instructions.

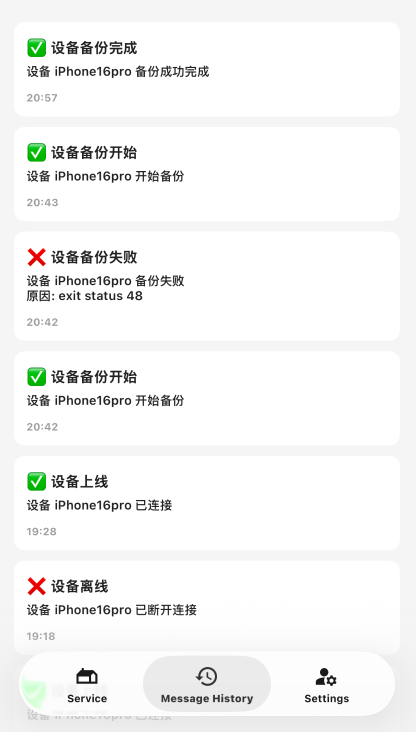

Bark	Server URL, Device Key	https://api.day.app is the usual service address; self-hosted services share the private-target restrictions with Webhooks.
Webhook	URL and method; headers are available through the API	Supports POST / PUT / PATCH, with POST when empty. The current UI has no custom-header editor.

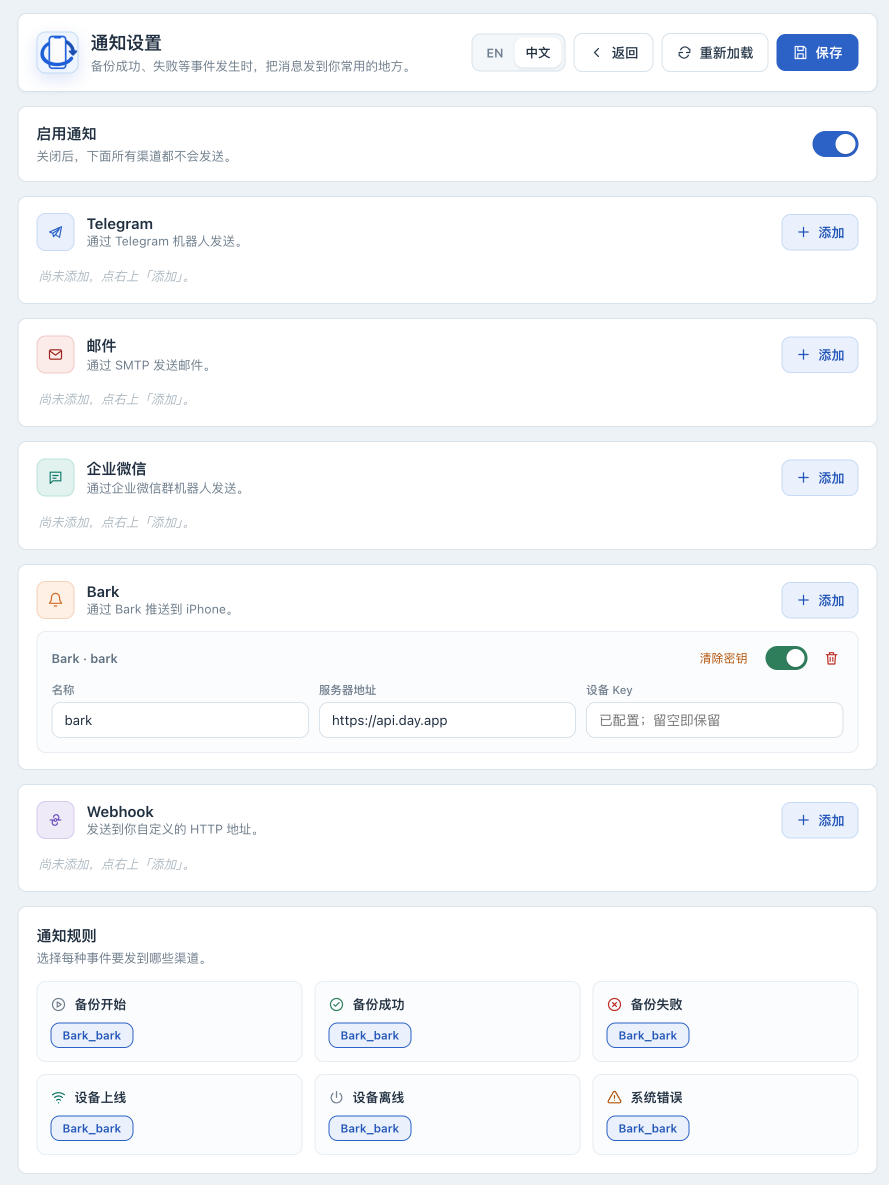

Add a channel, assign rules and save

1. In the Web UI , open Notifications and turn on “Enable notifications”. With the master switch off, no channel sends.
2. Click “Add” under the chosen channel type. Use a recognizable name unique within that type, enter its destination and credentials, and enable it.
3. Under “Notification rules”, select that channel for “Backup started”, “Backup succeeded” and “Backup failed”. Enabling a channel without assigning an event rule does not deliver that event.
4. Start with default templates; customize “Message templates” later using body templates on this page.
5. Click “Save” and confirm “Saved”. Reload and check switches, names and rules. Secret fields showing “Configured; leave blank to keep” are expected; stored secrets are not returned to the browser.

Check test delivery, then a real event

1. In “Test”, choose “Backup succeeded” and click “Send test”. This actually sends messages to the channels assigned to that event.
2. At the receiver , look for the test message and verify destination and time. The UI’s “sent” toast alone does not establish delivery to every channel; it currently does not display all per-channel results in the response.
3. Check each configured destination. For failures, inspect logs and failure branches below. If necessary, use browser developer tools to inspect the per-channel results in that /api/notifications/test response using test responses. Do not share credential or CSRF request headers.
4. On the device page , start one permitted real backup following first USB backup. Confirm the start event, then the success event after completion. Do not disconnect or manufacture data errors to test failures; use the test event to validate failure-message formatting.
5. Record the date, channel names and app version of a successful check. Always inspect the actual job result when a message is missing.

Change credentials, rename or disable delivery

Leaving an existing password, token, or other secret field blank preserves its old value. Enter a replacement, save and test again. Replacing a Webhook secret includes its URL and headers: changing the URL in the UI clears headers previously set through the API. For a channel with custom headers, provide the new URL and complete headers together through the API as described in the Webhook reference, then test. Do not replace the instance master key to rotate one channel credential.

Rules reference full notifier names: Telegram_<name>, Email_<name>, Wecom_<name>, Bark_<name>, Webhook_<name>. The UI generates these names. Secrets are indexed by name, so empty fields cannot inherit old secrets after a rename. To rename a channel:

1. Keep the old channel enabled, remove it from every event rule and save.
2. Change the name, re-enter credentials, assign the new name to rules and save. A Webhook with custom headers also needs its complete secrets supplied through the API.
3. Reload to check names and rules, then send a test and verify receipt. Changing only the name is insufficient.

To pause all delivery, turn off the master switch and save. To disable a channel, clear its secret or remove it:

1. Keep the channel enabled, remove it from every event rule and save.
2. Disable the channel, choose “Clear secret” or remove the entry, then save again. “Clear secret” also disables the entry.
3. Reload to verify. Stale rule references cause Save to fail, while a disabled channel may disappear from the rule selector. If this happens, re-enable it before clearing its rules. Disabling delivery does not delete backups.

Event reference

Event	Trigger scope
backup_start	Eligibility checks passed; the backup command is about to run.
backup_success	The backup job completed successfully; this is not device-restoration validation.
backup_failed	An already-started backup command failed; failures during earlier condition checks or command startup do not always trigger this event.
device_online	The app detected that a device went from offline to online.
device_offline	The device has not been detected for longer than the applicable waiting period.
system_error	Persistent connection-service failures, pairing issues requiring action, and explicit failures in restore, unpack, encryption or password storage operations. Error logs alone do not send notifications.

A device temporarily missing, a pairing-check timeout, a locked device or pairing unsupported on the current connection updates the UI and logs without sending a push. Wi-Fi connections only validate existing pairing. To establish trust again, connect using USB, unlock the device and confirm “Trust This Computer”. Manual pairing results appear in the device’s backup settings.

With automatic backups enabled, due checks must explicitly report invalid pairing at least three consecutive times over at least five minutes before sending one “Device needs pairing” warning. Successful validation resets this warning; a temporary disconnect does not rearm it. Connection services notify after three consecutive failed queries outside the startup grace period, and rearm only after successful queries spanning one minute. Deduplication is held in memory and starts afresh after application restart. The master switch, channel rules and asynchronous delivery behavior still apply.

Body templates

Each event can have a body template; blank uses the built-in default. Supported variables are ${title} (built-in title), ${content} (original body), ${device_name}, ${device_udid}, ${timestamp} (RFC 3339 in Beijing time), ${type}, ${level} and ${reason} (failure reason). Unknown variables are rejected; not every event contains a device or failure reason.

[${type}] ${device_name}
${content}
${timestamp}

Templates affect bodies across channels; other Webhook JSON fields remain intact. After editing a template, save and send a test for that event to check the body and substituted values.

Secret storage and API checks

With the default container paths, bot tokens, SMTP passwords, WeCom URLs, Bark device keys and Webhook URLs/headers are encrypted in /configs/secrets.enc using the instance master key (default /configs/secret_key; see configuration for advanced overrides). Ordinary settings are in /configs/notification_configs.json. Keep the matching key and files in a protected backup; never commit real configuration to Git. Follow instance recovery to prepare matching copies for migration.

GET configuration does not return secret values; configured: true indicates stored secrets. Run these read-only commands on the host; curl prompts for the administrator password. Adjust the port if needed:

curl --user iosbackup http://127.0.0.1:9000/api/notifications/status
curl --user iosbackup http://127.0.0.1:9000/api/notifications/config

Output can still disclose destination names, accounts and rules; sanitize it before sharing. Saving configuration and sending tests are mutations requiring authentication plus an X-IOSBK-CSRF header with the current page’s iosbk-csrf meta value; use the UI for routine operations. POST /api/notifications/config saves the entire notification configuration. Sending a fragment as a patch may remove other channels or rules. See the Webhook reference for header configuration and an example.

Test responses

POST /api/notifications/test actually sends messages. Responses contain attempted, succeeded, failed and per-channel deliveries:

HTTP status	Meaning
200	All attempts succeeded
207	Some attempts failed
502	All attempted deliveries failed
409	No channel was attempted

Input errors are returned separately. Verify actual receipt and the response rather than relying only on the current UI toast. Notifications for real events enter a queue with limited capacity and are then sent in the background. Messages can be dropped when the queue is full, and shutdown can affect delivery. Pending messages are not saved persistently.

When messages do not arrive

Symptom	Check first	Next action
Test attempted no deliveries	Master switch, channel switch, selected event rule	Save and retry once; no selected notifier may return 409
Only some channels fail	Actual receipt at every destination	Inspect deliveries or container logs and resolve individually
SMTP fails	Host, port, credentials, TLS and sender/recipient	Check implicit TLS on 465 or STARTTLS under channel fields; keep certificate validation
Webhook returns 401/403	Receiver authentication requirements	Check URL/headers without exposing authorization values
Private Webhook/Bark is blocked	Destination IP, HTTPS and allowed network	Add the smallest required private CIDR using the Webhook reference, then recreate the container
Tests arrive but real events do not	Actual rules and whether the job really started	Eligibility or process-start failures do not always produce backup_failed
Secrets fail after migration	Whether the key matches secrets.enc	Restore the original key and matching copy; do not delete secrets as an experiment

docker compose logs --tail=200 iosbackup

Sanitize reports using troubleshooting. Once configuration, test delivery and a real event are verified, continue with automatic backups.
